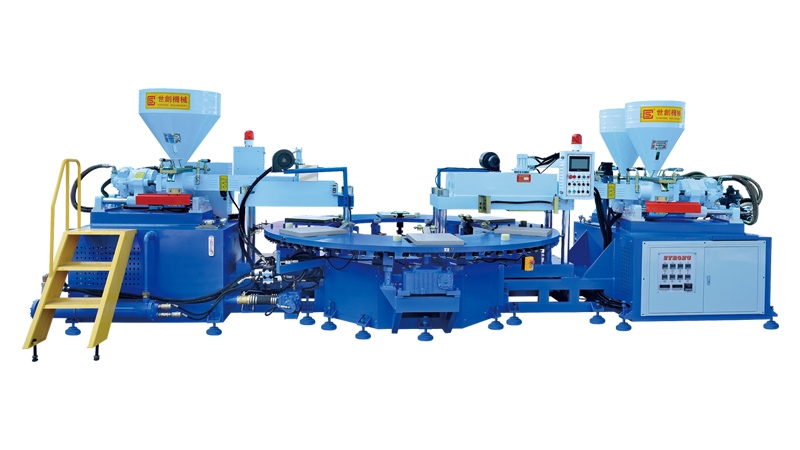

AUTOMATIC ROTARY TYPE THREE COLOR STRAP / HIRIZONTAL INJECTION MOULDING MACHINE
1.This machine is equiped with multi-function operation system ,can produce one/two/three colors pvc strap and sole of children shoes.
2.It can inject fastly,and the clamping force is strong.
3.The installation is very simple and essy.
4.The operation is easy,and the workers required are less than before.
5.It is very exact to use industrial human machine interface and PLC program control.
6.The operation is safe and reliable.
7.Selecting servo energy conservation system to save about 30% energy.
2.It can inject fastly,and the clamping force is strong.
3.The installation is very simple and essy.
4.The operation is easy,and the workers required are less than before.
5.It is very exact to use industrial human machine interface and PLC program control.
6.The operation is safe and reliable.
7.Selecting servo energy conservation system to save about 30% energy.
| Model | Unit | SC-606-2-100T | SC-606-3-100T |
| Raw materials | PVC/TPR | PVC/TPR | |
| Work stations | stations | 6/8/10/12 | 6/8/10/12 |
| Injection capacity | cm3 | 250/150 | 250/150 |
| Screw diameter | mm | 50/40 | 50/40/40 |
| Injection measuring accuracy | g | ±0.2 | ±0.2 |
| Screw rotating speed | r.p.m | 1-120 | 1-120 |
| Mould clamping force | ton | 100/100 | 100/100 |
| Max.space of mould | mm | 300X300X130 | 300X300X130 |
| Heating power | kw | 3.6X2 | 3.6X3 |
| Power of motor | kw | 11/11 | 11/11 |
| Whole machine power | kw | 38 | 42 |
| Pump pressure | Mpa | 14 | 14 |
| Machine size (L*W*H) | mm | 6500X2500X1650 | 6500X2500X1650 |
| Machine weight | kg | 10000 | 11000 |
| The above technical datas are just for reference,in case of any change without any prior notices. | |||
